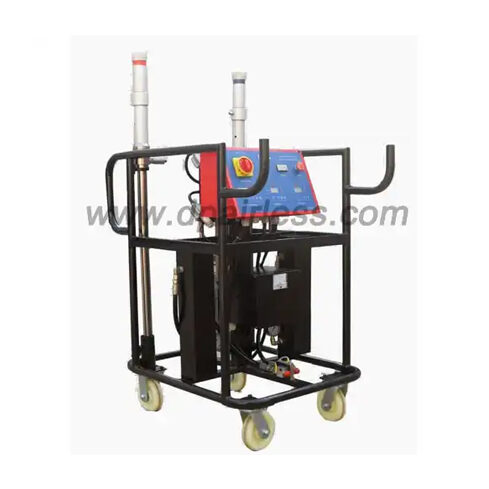

DP-AXP15, пневматическое оборудование для напыления полимочевины

Model No. DP-AXP15 Mode of driving Pneumatic (Air-driven) Mixing volumetric ratio 1:1 Maximum output volume 6kgs/min (13 lbs/min) Maximum temperature of fluid 90°C (194°F) Maximum working pressure 170bar / 2500psi Compressed air pressure 3-8bar (43-120psi) Air consumption @7bar 1.2CBM/min air compressor output: 1.4CBM/min Heater power 11000W – 15000w Maximum hose length 90m Spraying materials: about 80-100 square meters per hour Power parameters Single-phase 220V 50Hz 40A Net weight 140kgs Overall size 85cm x 65cm x 130cm Packing dimension: 95cm x 75cm x 145cm Contents in package: Machine 1 set Transfer pump 2 sets Heating hose 15m (50ft) Heating whip hose 1.5m (5ft) Polyurea spray gun 1 set Repair kit 1 set Cleaning fluid 1 kg DOP 1 kg * Powered by air compressor with max.8bar and 1cbm/min output * This AXP15 is designed for polyurea spraying system. * Bigger diameter air cylinder will generate bigger power and higher pressure, for polyurea spraying. * More power heater will generate higher temperature for your polyurea spray jobs. * Accurate temperature control and easy monitoring for result in good quality of sprayer material * Stainless steel precise proportioning pump with long lifetime * Innovated two-circuit heating pipes adopt the most advanced wrapping internal heating, it will maintain the required temperature and viscosity for the perfect components mixing ratio and finish.
