Power Supply: 380V/3-phase32A Max Installed Power: 7.55kw Mixing motor power: 5.5kw Feeding wheel power: 0.75kw Electropump motor power: 0.55kw Compressor: 0.75KW-250L/min Material Flow: 26L/min Pumping distance with 25mm hose: 25m Pumping height: 25m Hopper capacity: 115L Loading height: 900mm Soundpressure level: <80dB(A) Machine weight: 220kg Machine dimensions: 1250x730x970mm Packed weight: 326kg Packed dimensions: 1300x800x1250mm

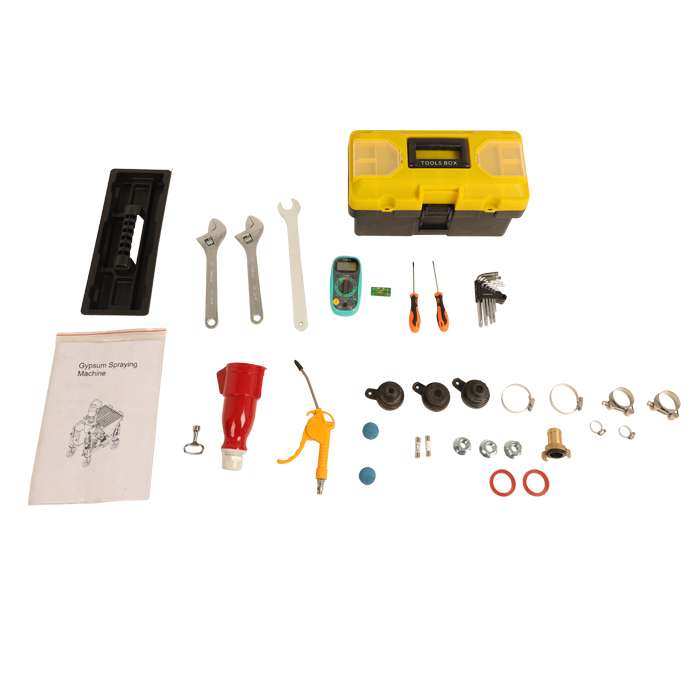

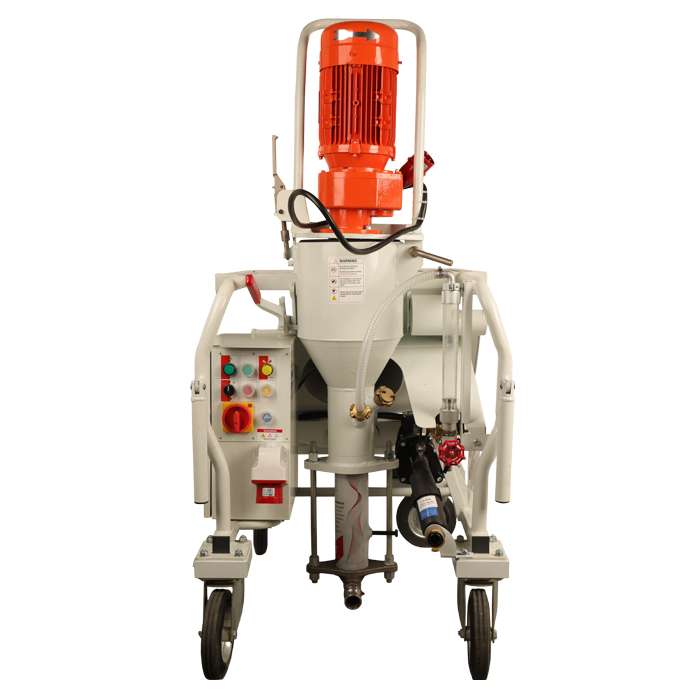

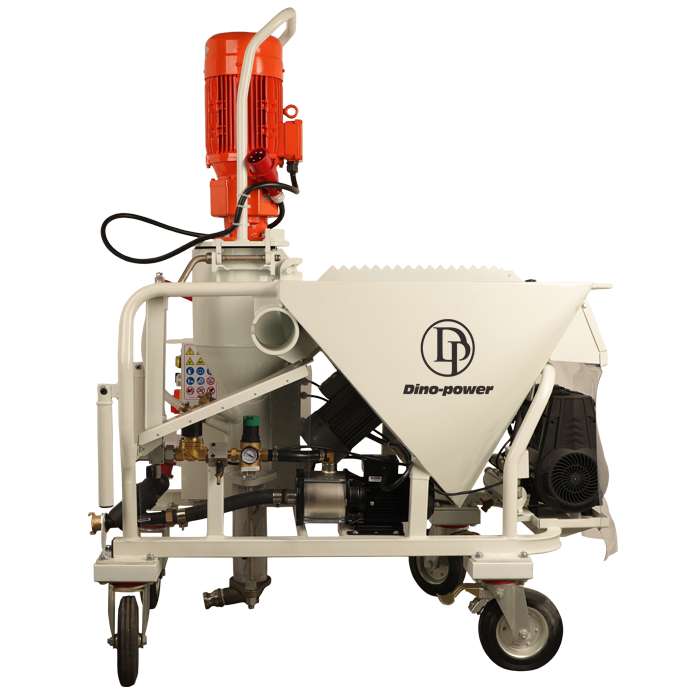

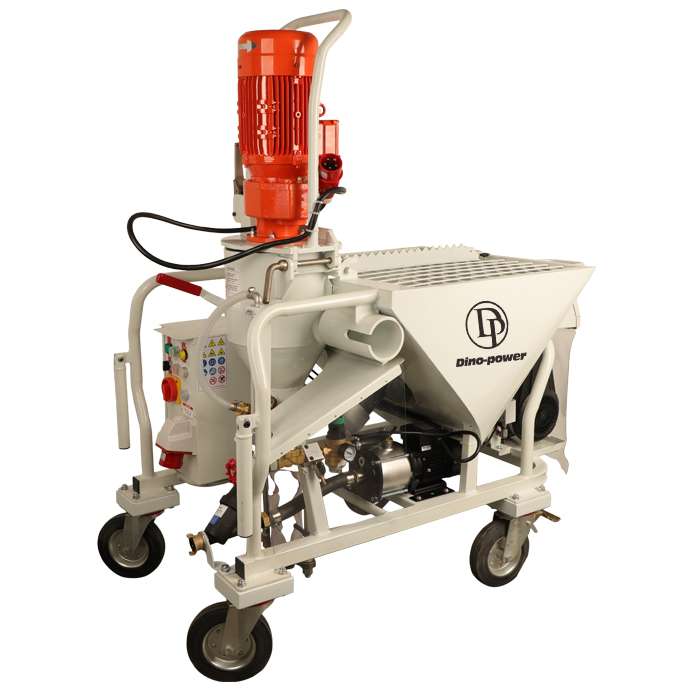

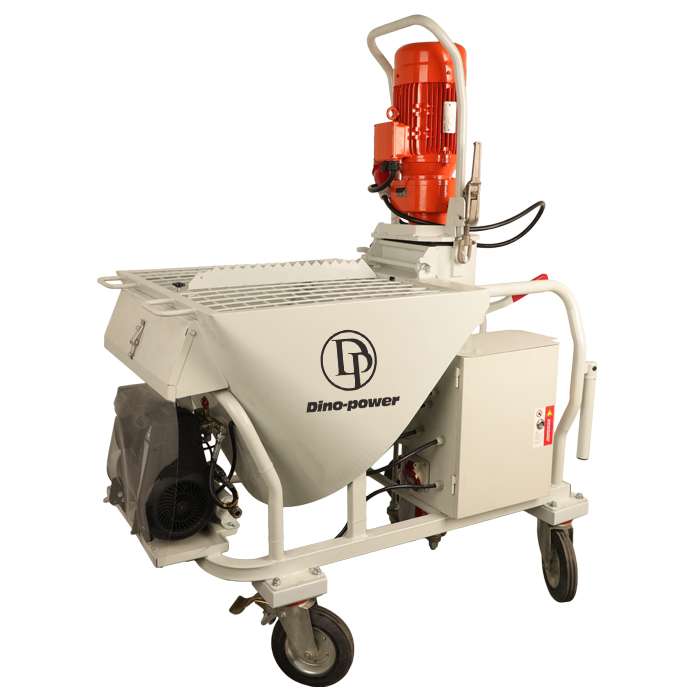

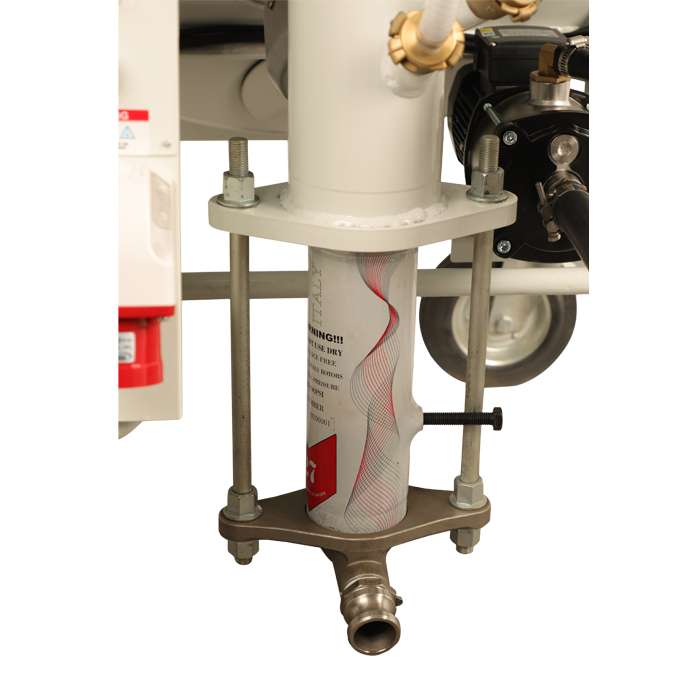

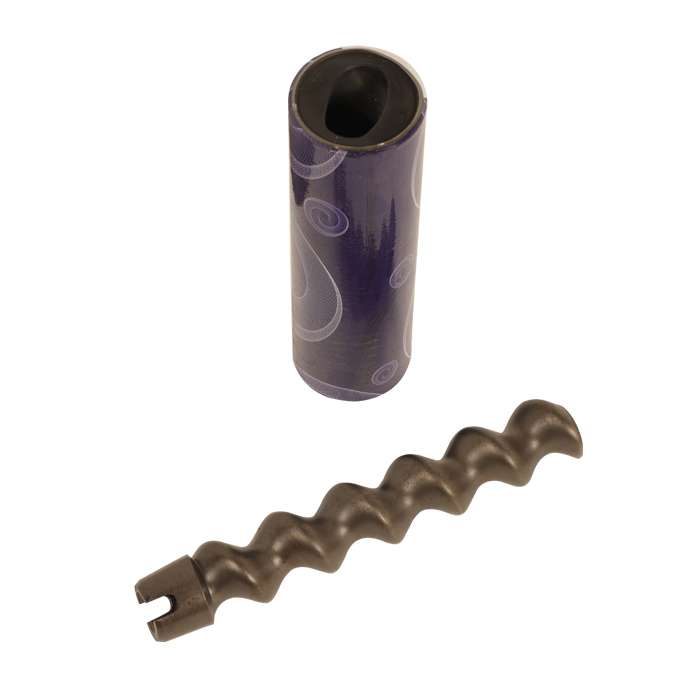

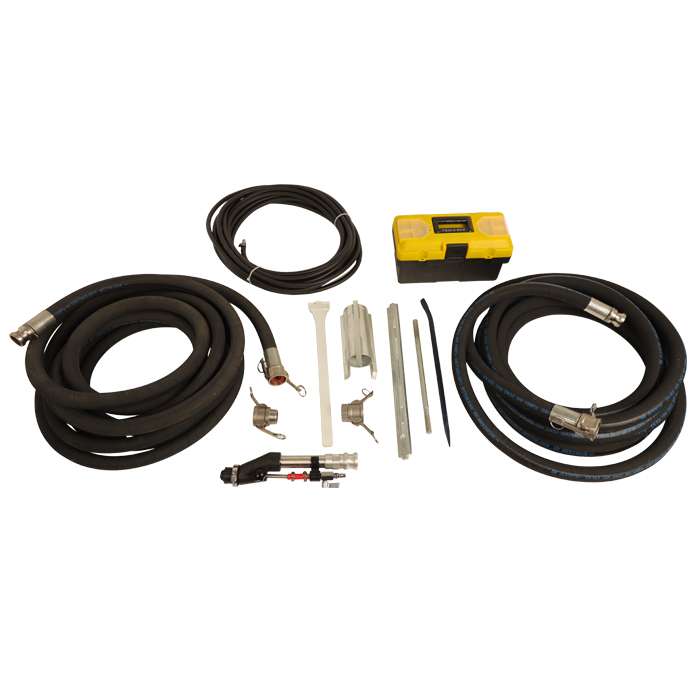

DESCRIPTION of the MIXER PUMP The M6 handles all pumpable dry mortars From base coats to textured plasters-indoors and out.It is a user-friendly,the modular design allows for effortlessdisassembly,easy transport in cars and quick setup on anyfloorJust connect the hoses and go! The transparent layout of the controls and the conscious avoidance of superfluous switches make for simple operation. The universal wheels mean that the mixer can be transported with ease at all times. It has easy and quick to use tensioning wedges, enabling important elements such as the worm pump or material container to be replaced in just a few seconds. Two Options 1. Standard 2. Premium (Imported gear reducer, air compressor, water pump, and electrical components) Smart Compressor Pressure cut-off for enhanced safety. Reinforced frame For maximum durability, plus a new built-in toolbox for accessories High-Performance Output Heavy-duty cast iron manifold allows for 50m pumping distance with minimal component wear. Optimized feeding wheel Larger cells for superior fiber material intake Conical Mixing Pipe For optimized material flow Reliable Operation Redesigned hydraulics for easy water drainage.Features a high-capacity self-priming pump Single-sided controls For comfortable operation.Everything in sight In-built Water Pump Ensures constant flow. Insertion aid For easy rotor installation Areas of use and applications M6 suitable for pumping or sprayingall dry premixed materials: - Cement/lime/gypsumplaster based - Structuralreinforcement mortars - Anti-humidityrestorative plasters - Insulating plasters based on polystyrene or cork - Structuralreinforcement mortars - Grout/Core-Fill Grout - Cement/anhydride based self-levelling screeds - Thermalinsulatingscreeds based on cork or polystyrene - Fireproofing mortar - Glues for thermalinsulation coatings - Binders/mortarsforinjections
