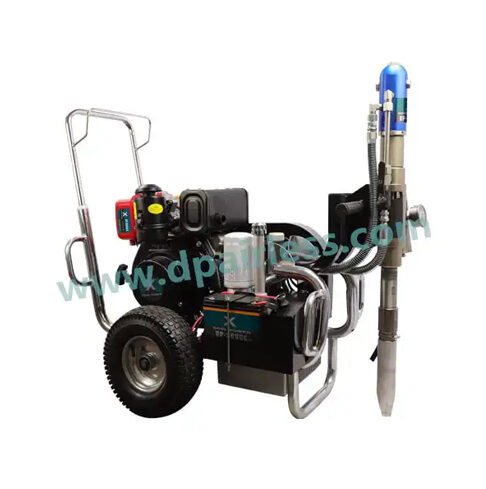

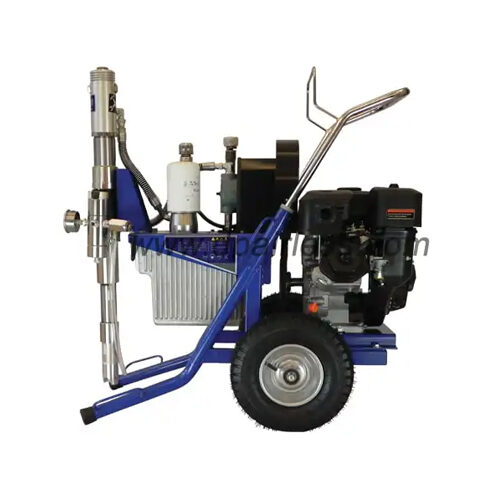

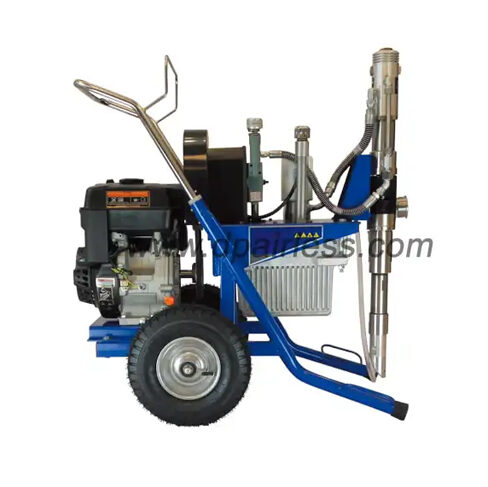

DP-9600GL, безвоздушный аппарат с бензиновым двигателем и ремённым гидроприводом

Specifications of DP-9600GL Hydraulic Airless High-Pressure Spraying Unit (Belt driven): Power 9.0HP (6700W) Petrol Engine Honda or other Chinese brand. Pressure 228bar / 3300psi Flow Rate 12L/min Max Tip Size 0.056” * 1 gun Max Hose Length 90 m Hydraulic oil. DTE24 32# total 13 Liters (we recommend the user to change the oil every 6 months) Net Weight 89 kg Carton Dimension: 12075120 cm Container Loading Data: 30 sets/20ft Comes complete on Heavy Duty Trolley, High Flow Hydraulic Piston Pump, Airless Gun, 15 meters * 3/8 “ Hose, 1m*1/4″ whip hose, Airless Tip 643#, Base and Tool Set.

Features of DP-9600GL Hydraulic Airless High-Pressure Spraying Unit (Belt driven ): Powerful high-performance pump -the power pack for large building projects and applying high viscosity materials. The material pump of the Heavy duty units is driven by hydraulic motor which is imported from Japan (Taiwan&China hydraulic motor is available with cheaper price). This has advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps. Our own improved bigger oil tank which contains of 13L hydraulic oil inside, much bigger than Wagner original machine which is only 5L. The more oil inside, the less temperature machine is operating, and less wearing for the spare parts. The low wear rate and the equipment are further positive aspects of hydraulic technology. The wear surfaces of cylinder and piston rod are coated with an extremely wear resistant layer of hard chrome, making them able to with-stand aggressive and abrasive materials. The pressure can be smoothly regulated up to 230 bar for perfect matching.

Applications of hydraulic airless sprayer (gasoline engine powered): Indoors : Large interior wall surfaces requiring a high level of productivity and surfaces coverage power:e.g. Primers, latex paints, emulsions and all other water diluted and solvent based materials Applications of fillers (airless spray fillers) Flame proofing / fireproofing, putty / plaster, gypsum, Outdoors : Exterior wall surfaces Roof coatings Thick coating materials Bituminous paints Corrosion proofing Inorganic zinc and micaceous iron paints basement sealants. Other : – Fabric and other adhesives – epoxy paint – polyurethane paint - A pair of open-end wrenches - DP-6376G Heavy Duty Texture Spray Gun 500 Bar - 3/8 25M Pressure Airless Painting Hose - 50CM Extension Pole - Model T Airless Spray Tip - 3/8male 3/8female Swivel Connector - 100 ml (major Lubrication Oil) - protective mask - Spray paint suit - Workbasket - DP-637G Single Seal Gasket - DP-637ST Safety guard/tip holder
